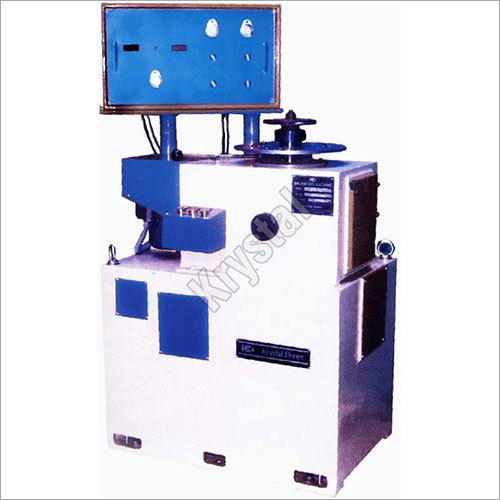

Vertical Axis Balancing Machines

Vertical Axis Balancing Machines
Vertical Axis Balancing Machines
Product Code : KE 07
Brand Name : KRYSTAL EQUIPMENTS
Price And Quantity
  • Unit of Measure
  • Unit/Units
Product Description

We hold immense expertise in catering to the variegated needs of the customers by providing them with a quality assured Vertical Axis Balancing Machines. This is made up following set standards and norms of the industry using latest technology and tested materials. We procure required materials from some of the well known and certified vendors of the domain. We select them on the basis of their current marker position. As an outcome, we are massively known as customer friendly Manufacturer, Exporter and Supplier.

Construction of
Vertical Axis Balancing Machines:

Each standard Machine is of rigid, durable construction reflecting the highest quality of workmanship. All operating elements are arranged considering ergonomic & safety requirements of the operator.

Features:

  • Cost effective solutions for rotors without own journals
  • User friendly with operator safety
  • Solid reliable structure
  • State of the art electronic 8 computerized measuring system

Electronic Measuring System”

The electronic circuitry used is built in with plug in type cards. All components used are of industry standards and carefully selected for long life and trouble free operation. All measuring systems have built in electronic compensation for compensating the shift of component journal axis from the spindle axis.

Options For Measuring Systems:

  • Direct indication of unbalance mass and angle in digital form
  • imbalance resolved in components at120o, 90o, 60o, etc.
  • Microprocessor controlled system
  • Any special requirement to suit the component

Mechanical Attachments:

  • Following optional attachments are available to increase productivity
  • Drilling attachments
  • Pneumatic job clamping
  • Riveting
  • Any other tooling system as per special requirement

Note : There is no limit for minimum weight on our machines. While, purchasing our Vertical Axis Balancing Machine, one has to see the minimum imbalance measured and check whether it meets accuracy requirements of the smallest job to be balanced.

Specifications:


Parameter

Units

Models





KHV-10
KHVT-10

KHV-30
KHVT-30

KHV-50
KHVT-50

KHV-100
KHVT-100

KHV-300
KHVT-300



Maximum weight of Rotor

kg

10

30

50

100

300

maximum diameter of rotor

mm

400

500

500

600

600

Balancing Speed

RPM

750

600

500

400

300

Drive motor power

HP

0.5

1

1

2

5

Acceleration Capacity GD2n2

kgm2n2

0.37x102

0.88x102

3.0x102

3.9x102

19.2x102

Minimum unbalance mass read

gm

0.1

0.2

0.3

0.5

0.5

Maximum unbalance read

gm.mm.

104

3 x 104

5 x 104

105

3 x 105

Minimum unbalance Measured

gm.mm

2.5

5

7.5

10

10

Minimum Achievable Residual unbalance (for Max Wt of Rotor)

gm.mm /kg

5

5

5

5

5

Note : Due to constant research and development, specification and features are subject to change without notice.
